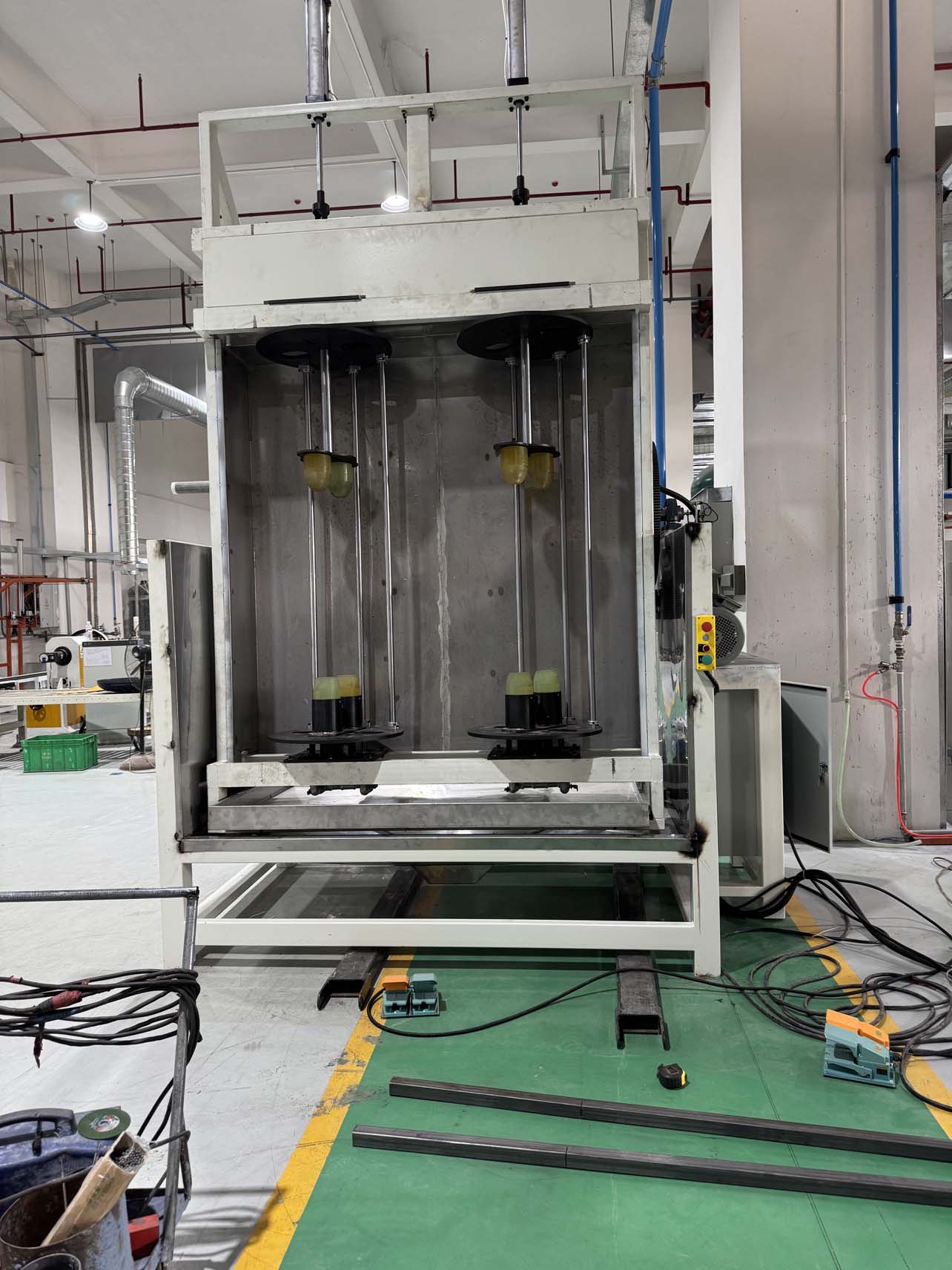

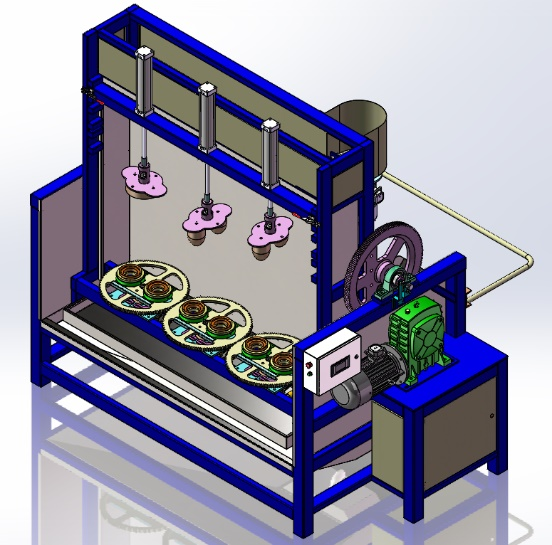

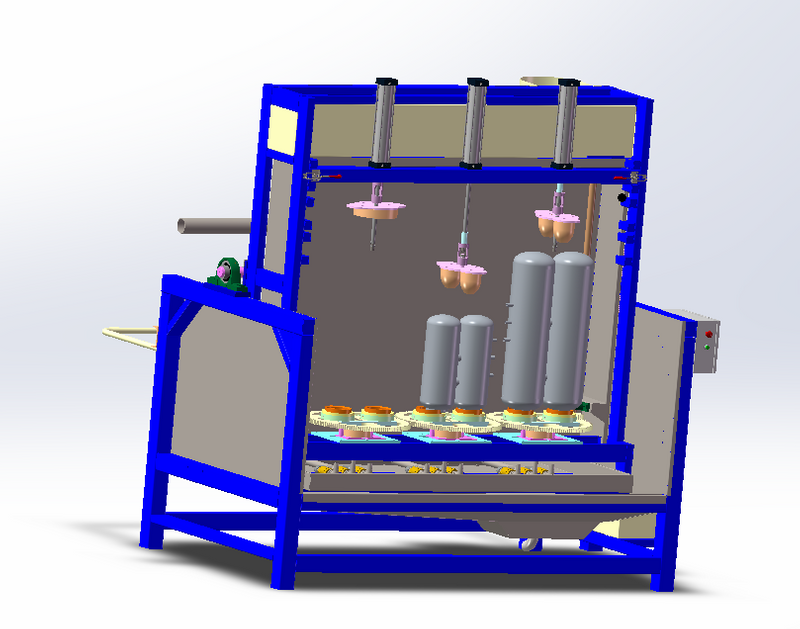

semi_automatic Enamelling Machine

Enamel line technical specification
No.	Item		Unity	Parameter	Remarks
1	Applicable diameter		mm	φ300,φ340,φ370,φ410	Single inner_tank
2	Height of inner tank	min	mm	400	The maximum length is based on the original frame size
2	Height of inner tank	max	mm	1000	The maximum length is based on the original frame size
3	Average thickness of enamelling coating		mm	0.3~0.5
4	Totoal power		Kw	20	380(220)V/50Hz
5	compressed air		m3/min	9	0.6-0.8Mpa,Compressed air for instrumentation
6	industrial water		m3/h	2
7	Position space dimension		m	12×7.5×4.7	Length×Width×Height
8	Station number		PCS	9
9	production takt		S / 9pcs	180	50L for example
10	Staffing		PCS	22
