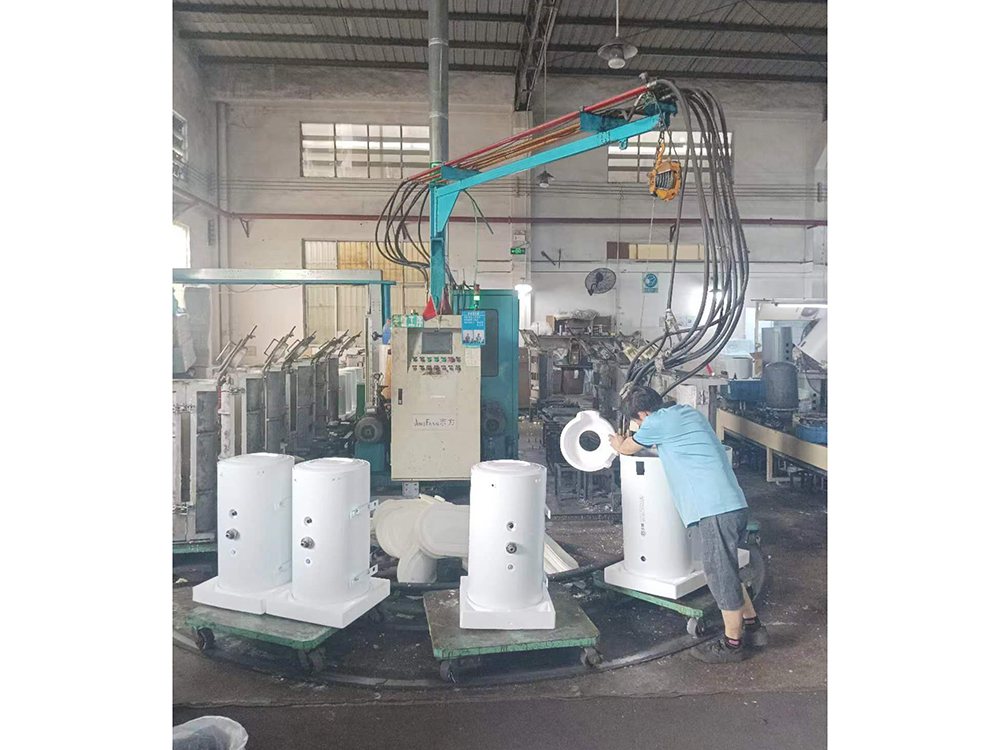

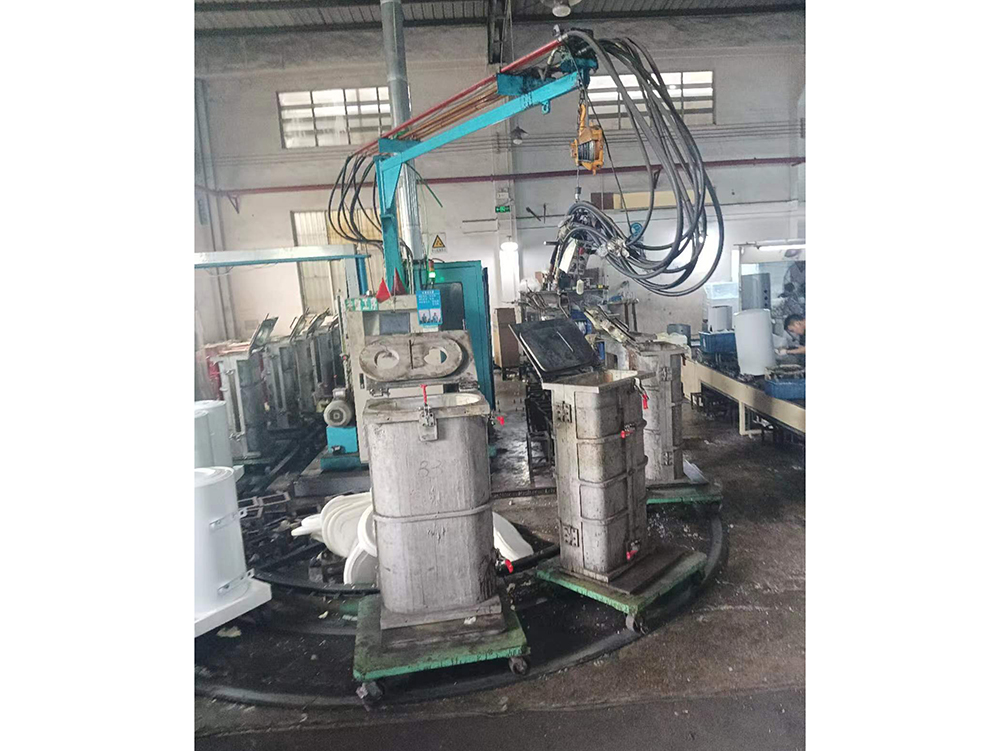

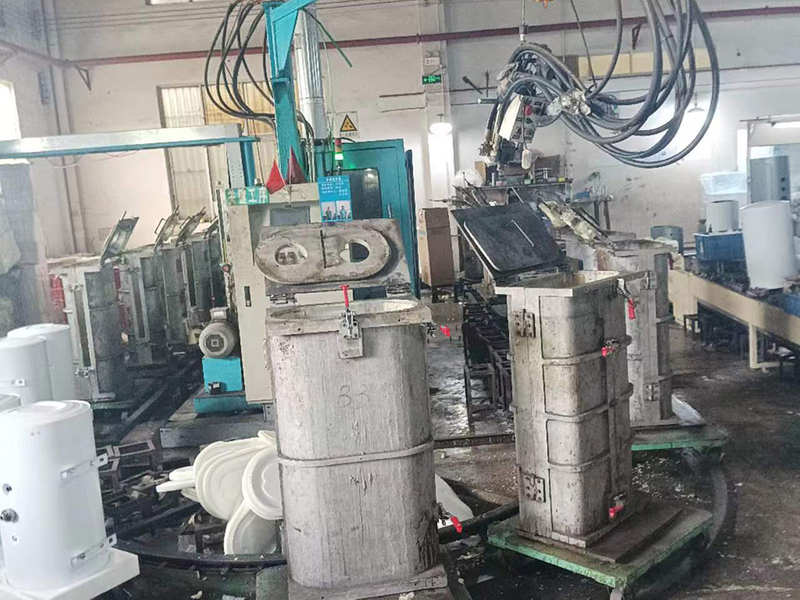

cyclopentane Foaming Machine

1

Applicable Foaming Types

F11/ 141B

2

Applicable Raw Material Viscosity  （20℃）

POLY :  ～2500MPas

ISO :  ～1000MPas

3

 Injection Pressure

6～20Mpa(Adjustable)

4

Injection Flow（Mixture Ratio 1:1）

200～350g/s

5

Mixture Ratio Range

1：3～3：1（Adjustable ）

6

Injection capacity

80-9999 g

7

Temperature tolerance

±2℃

8

Repeat Injection  Precision

1000≤±0.5%

9

Hydraulic System

Flow: 10 L/min ；System Pressure 15～28MPa

10

Mixing Head

BRS10-14V.2P

11

Hydraulic Oil Temperature

＜50℃(oil return for cooling)

12

Cubage of Material Tank

300L

13

Compressed Air Required Quantity

Dry & no Oil,  P：0.5 Mpa

Q：600NL/min

14

Temperature Control System

water heater chiller; hot &cool water change system

15

variable pump Motor

power:5.5Kw      R/S：1450r/m

16

Area

3000*1800*3100（Customized）

17

Total Power

23KW（With double frequency conversion power saving function）

18

Total Weight

About 3 tons

19

working Voltage

380V 50~60HZ
