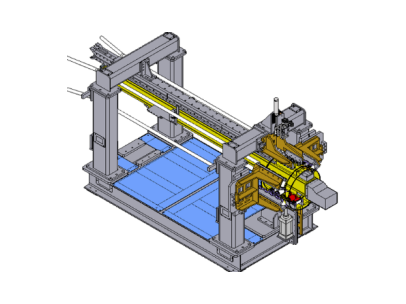

Longitudinal welding machine technical parameter | |||||
No. | Item | Unit | Parameter | Remarks | |
1 | Suitable diameter | mm | φ300、φ340、φ370 | Different diameters need to replace the corresponding mold | |
2 | Inner tank total height | min | mm | 290 | |
max | 800 | ||||
3 | Suitable sheet thickness | mm | 1.5~2 | ||
4 | Original sheet strength | MPa | ≤250 | ||
5 | Total installed capacity | kW | 1.5 | Welding power is not included | |
6 | Overall dimensions (without receiving rack) | m | 2.1x2x1.5 | Length x Width x height | |
7 | Weight | Ton | 1.2 | ||
8 | Welding speed | mm/s | 700~1200 | ||
9 | Travel speed | mm/s | ≤3000 | ||
10 | Staff | 个 | 0 | ||
