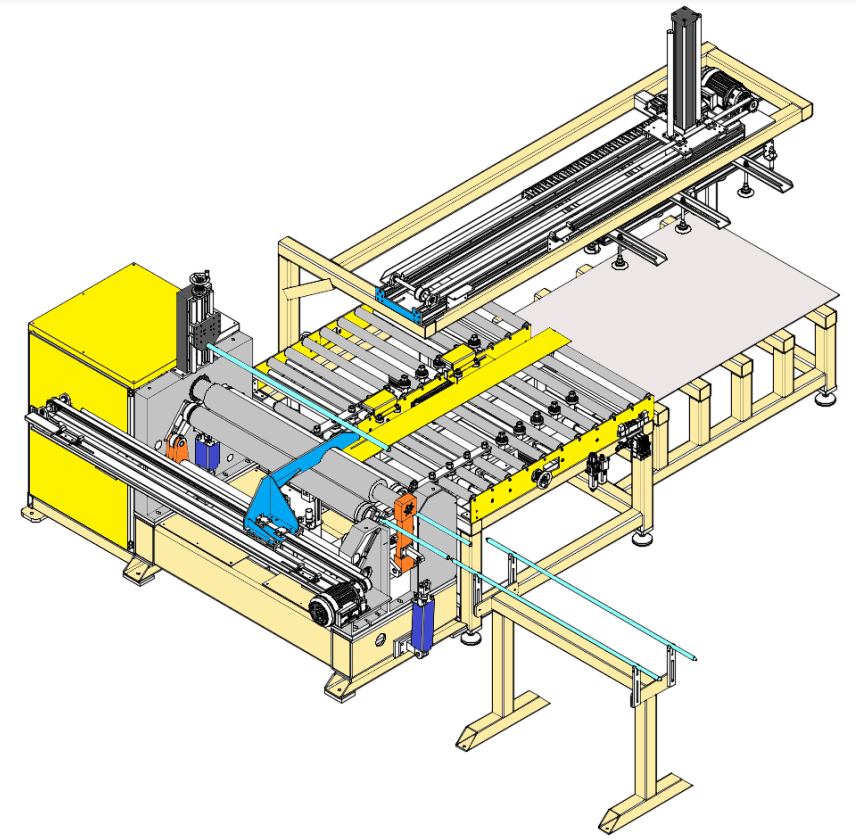

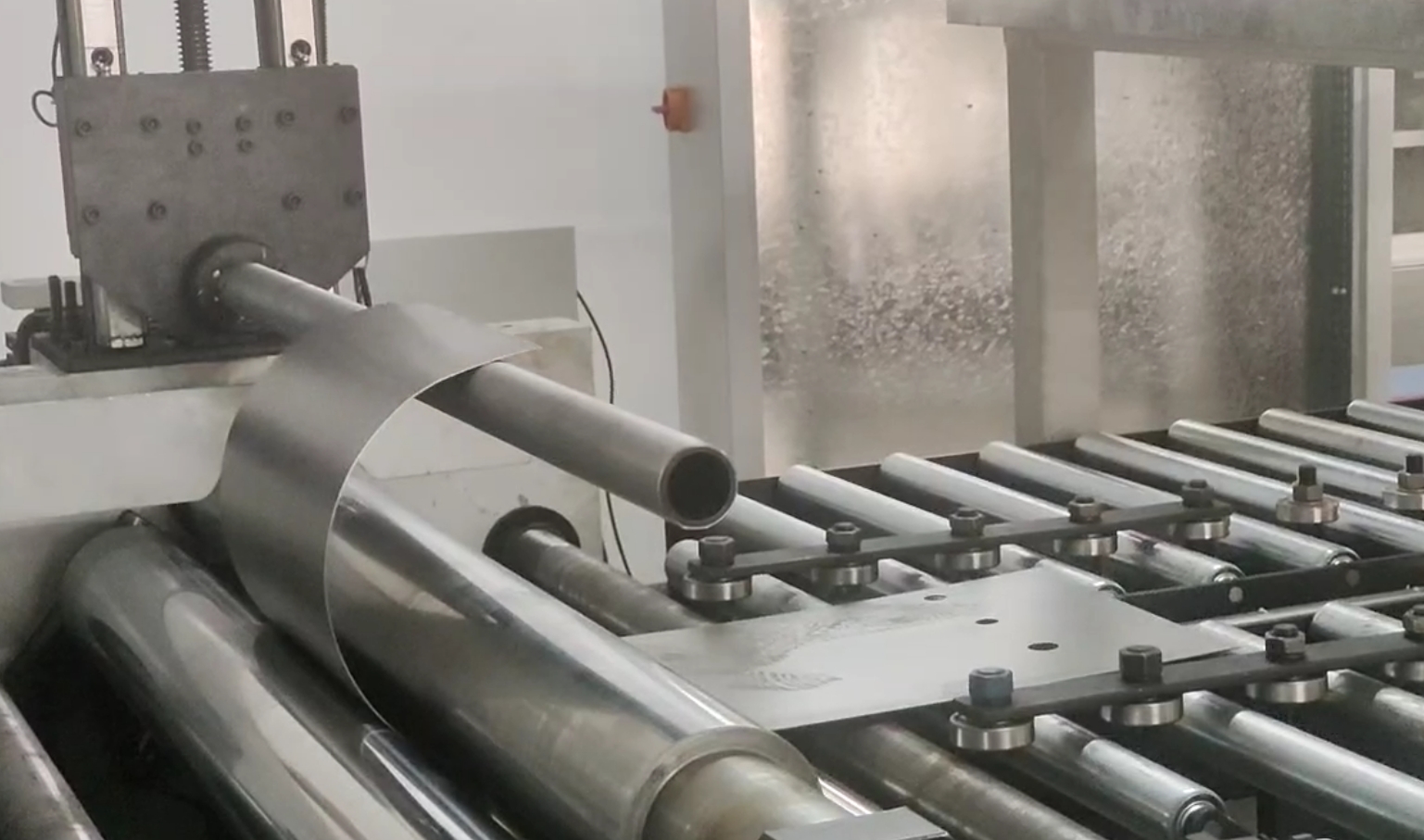

Rolling Machine

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Automatic four-roll winding machine technical parameters table
No.ItemUnityParameterRemarks
1Rolltube diametermmφ300~φ410
2Total length of the inner cylindermaxmm290
min800
3Original sheet thicknessmm1.5~2
4Original sheet strengthMPa≤250
5Total installed capacitykW10
6Unit dimensionsm4.1x3.5x2.8Lengthxwidthxheight
7Unit weightTon3
8Unit production rhythms/pcsApproximate 30Such asdiameter300mm
9staffingPCS0It is necessary for the technical personnel to adjust the parameters when changing the type
