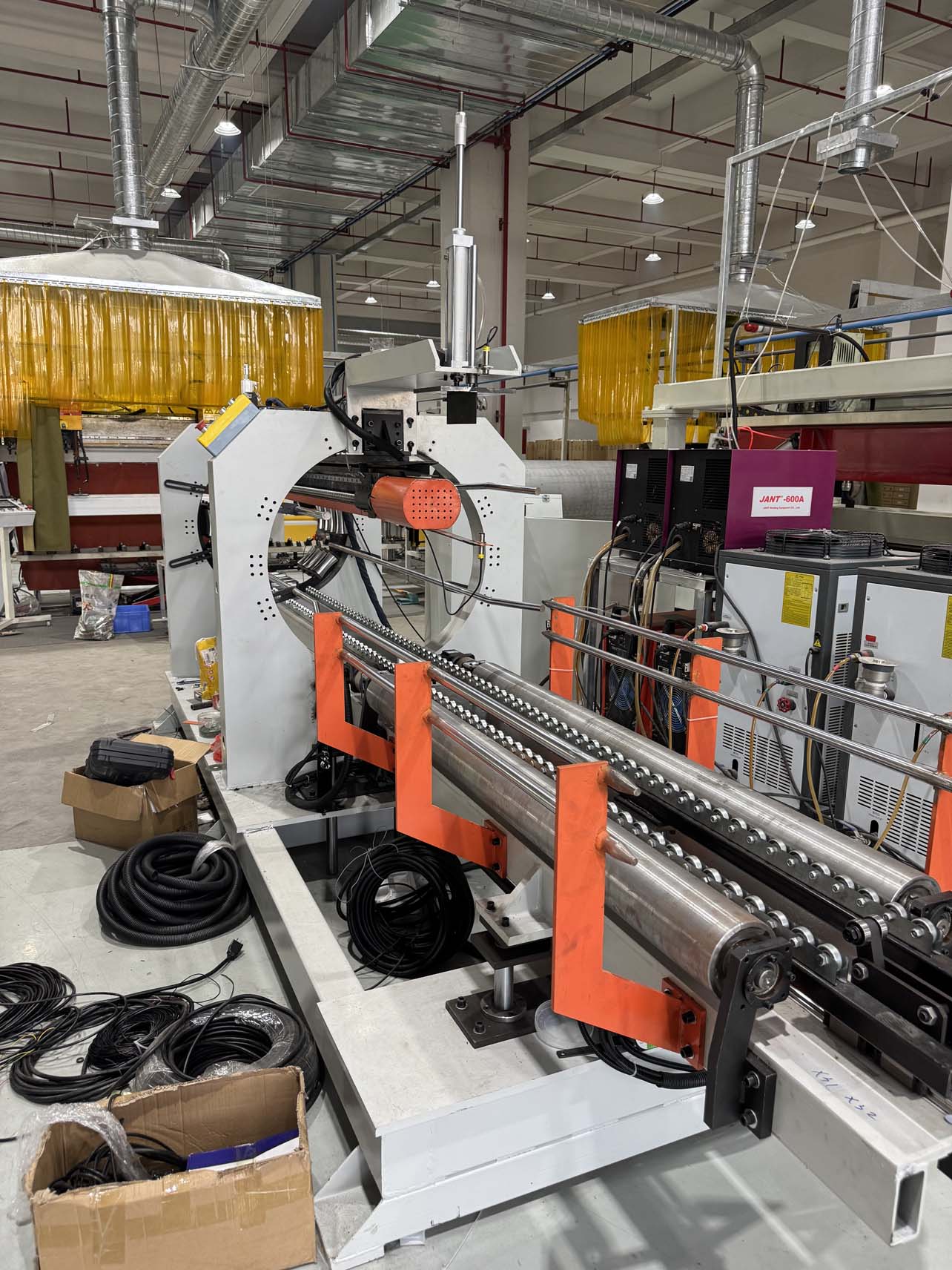

inner tank Longitudinal seam welding machine

Automatic straight/longitudinal/linear MIG weldingmachine

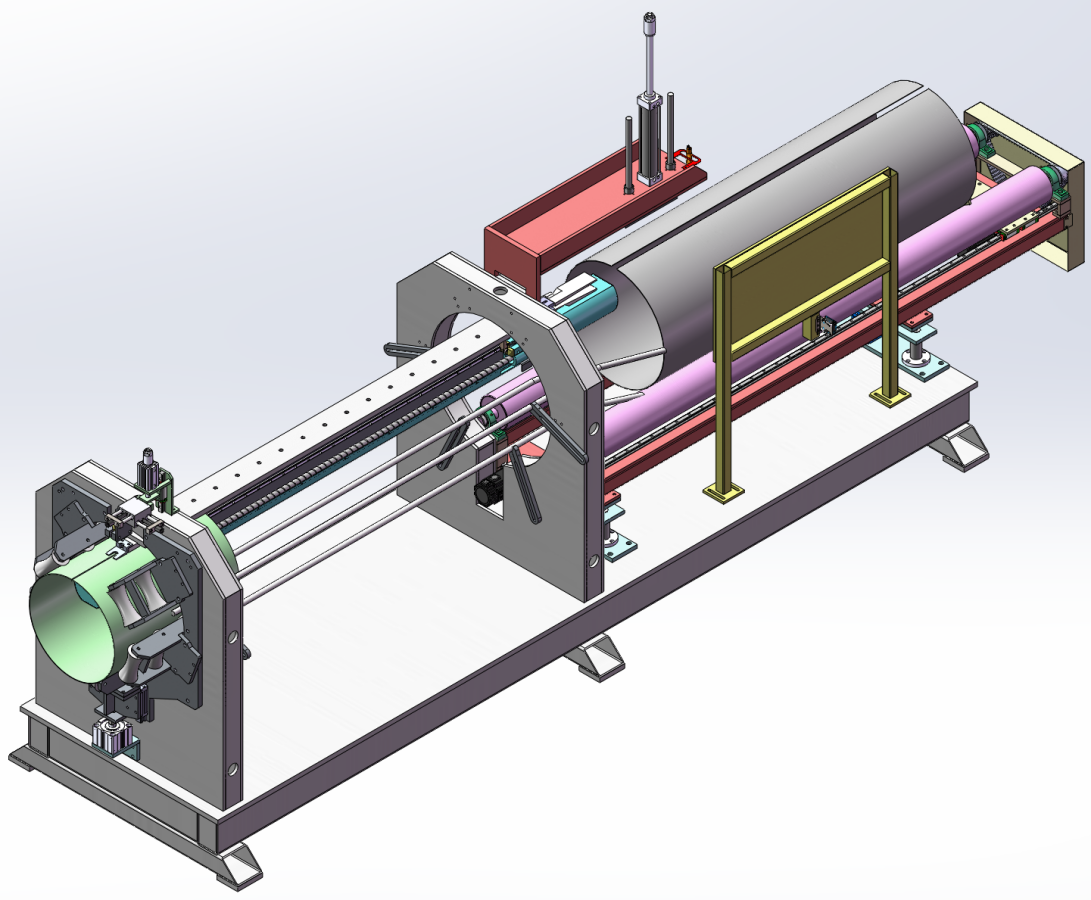

Tunnel welding automatic welding machine technical parameters table
No.	Item		Unity	Parameter	Remarks
1	Applicable diameter		mm	φ300,φ340,φ370	Different diameters need to replace the corresponding mold
2	Total length of the inner cylinder	min	mm	290
2	Total length of the inner cylinder	max	mm	800
3	Applicable sheet thickness		mm	1.5~2
4	Original sheet strength		MPa	≤250
5	Total installed capacity		kW	1.5	Welding power is not included
6	Overall dimensions (without receiving rack)		m	2.1x2x1.5	Length x width x height
7	weight		Ton	1.2
8	welding rate		mm/s	700~1200
9	Walking rate		mm/s	≤3000
10	Staffing		PCS	0
