| Product name | kitchen hood | Model | C88-1 | |||
| 1.performance standards | Matters not specified in this specification shall be performed according to the following standards: | |||||
| 1、<General Safety Requirements for household and similar Electrical Appliances> —GB4706.1-2005 | ||||||
| 2、<Particular requirements for the safety of range hoods for household and similar electrical appliances> —GB4706.28-2008 | ||||||
| 3、<kitchen hood> —GB/T17713-2011 | ||||||
| 2.Structure | Comprised of | It is mainly composed of five parts: box assembly, bellows assembly, tempered glass, electrical control unit and packaging accessories | ||||
| Type | side range hood | |||||
| 3.appearance | Characteristic | Six-key touch + body sensing, fully enclosed motor, side suction, manual flip of the middle glass, internal detachable long width air inlet net. | ||||
| Color | Glass black + cloud rice ash spray box | |||||
| 4.Technical specification parameter | Supply power | 220V～/50Hz | Net finished weight | 21kg | ||
| Total power±10% | 283W+120W(oil cleaner) | Finished gross weight | 25kg | |||

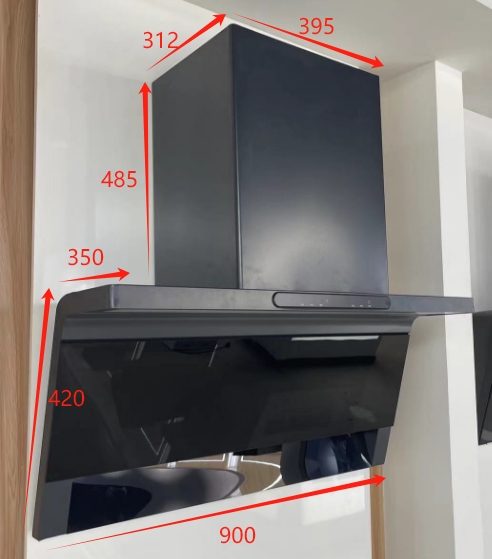

| main motor | 1）32# fully sealed 3-speed iron motor; | Machine Dimensions | 900*350*905mm | |||
| 2）Overheat protector rated disconnect/reset temperature 135±5℃/85±5℃ | carton dimension | 950*420*1040mm | ||||
| Maximum static pressure | 500pa±10% | air outlet | Φ180 Single | |||
| Air flow | 19±1m³/min | Somke duct | φ185*1.5m Double aluminum foil smoke pipe | |||
| Energy Efficiency Level | First level energy efficiency（As actual configuration） | coaming | 0.5mm 375*315*450 Height（mm) | |||
| Noise | ≤72dB（A） | Housing assembly | 0.5mm Cold plate spraying | |||
| Power cord | 3*0.75mm2*1.5M | Air cabinet assembly | 0.5mm Cold plate spraying | |||
| illuminated power | LED灯/12VDC/3W | wind turbine | 260*140mm Electrophoretic black | |||
| Capacitor | 6μF—450V | oil cup | 0.5mm Cold plate spraying | |||
| Control method | Touch + body sensing switch | glass panel | Glass black + galvanized plate (sticky plate) | |||
